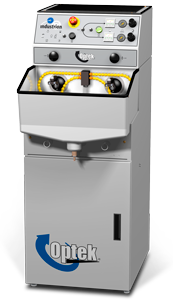

Optek Industrion Finer/Polisher 120/60
SKU: 429
Avail: Made to Order
Mfg: Optek
This item is no longer available. Alternative items may be listed below.
Description
Building on the solid design and reputation of the model 425, the Optek 429 Industrion toric finer/polisher series offers advanced features designed for the most demanding, high production environments.
Key Features
- Multiple materials processing with two customizable settings for pressure and cycle time
- Unique circular motion provides true axis control
- Two-speed motor offers enhanced versatility
- Auto speed ramping brings spindle motor smoothly up to operating speed. This reduces pad separation from lap during start up, especially helpful with gripper type pads.
- Synchronous (timed) gear belt drive mechanism minimizes vibration and prevents motion irregularities during processing
- Double baffle system with tertiary internal drip shield protects internal components
- Slurry system accommodates either standalone or central slurry operation with hookups at the rear of the unit
- Slurry pump is located remotely from the bowl to avoid overheating the slurry
- Oil impregnated bronze ("lubricated for life") bearings used in the Gimbal and Traverse Assemblies can have additional oil added through oilers to extend bearing life.
- Enclosure is constructed of heavy duty gauge sheet metal — no injection molded plastic
- Orbit and sweep range adjustments are made internally to prevent accidental resetting
- Full range of sphere and cylinder curves without the use of adapters
- Capable of both plus and minus surface processing
Specifications
- Size: 21" W • 32" D • 54.75" H
- Weight: 250 lbs
- Power: 120V, 15A, 60Hz, 1φ (other voltages available)
Requirements (not included)
- 80 psi (min) air source
