Optek Unity MAX Blocker, Wax

SKU: 281W
Avail: Made to Order
Mfg: Optek

Contact us for pricing

Description

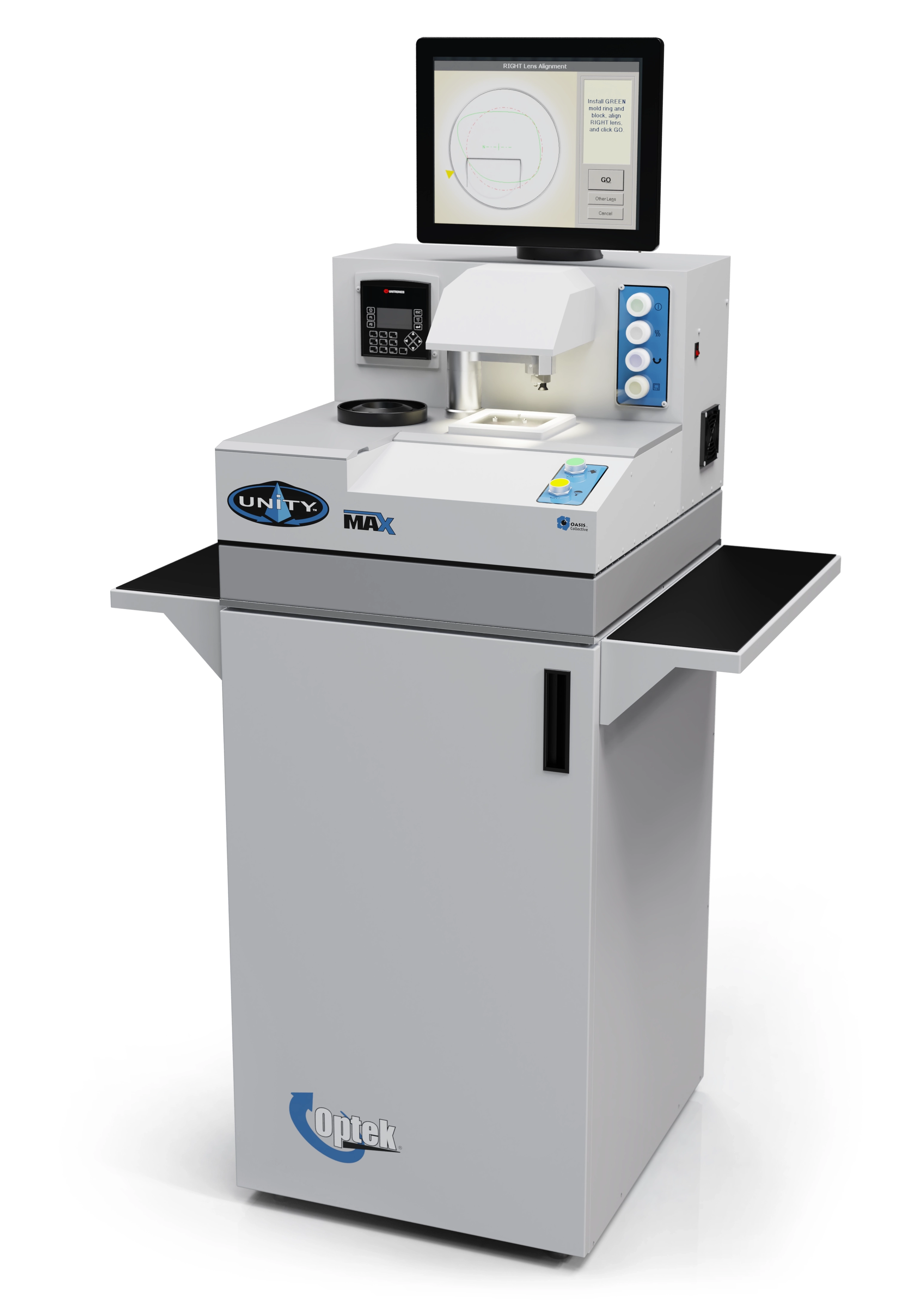

The Optek Unity MAX blocker combines highly accurate lens layout and blocking into a single, compact station. Unity MAX offers the precision and reliability of software-based lens alignment.

Key Features

  • Dispenses environmentally friendly wax blocking material
  • 15 inch touch screen control system
  • Software-based lens alignment offers the highest precision and reliability
  • Automatic lens hold down during cooling
  • Pressurized material delivery system allows smooth and controlled dispensing of blocking compound
  • Enclosure is constructed of heavy duty gauge sheet metal — no injection molded plastic
  • Control system is easily software-upgradeable
  • Serial interface capability with VCA-compliant host Rx software
  • Floor and bench configurations available

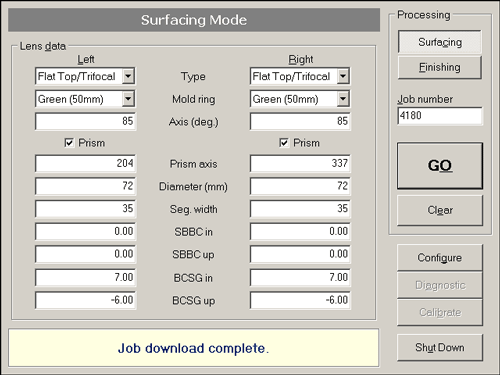

Job Download

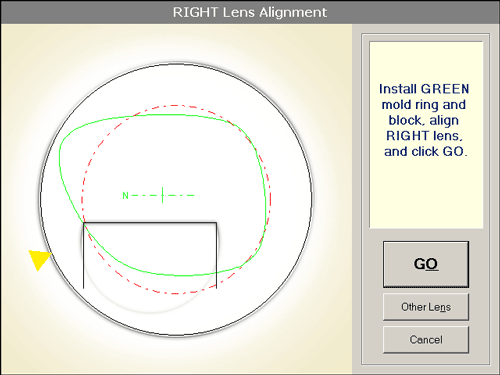

Lens Alignment

Specifications

  • Size:
    • 21" W • 28.5" D • 17.5" H (bench)
    • 35.5" W • 25" D • 53" H (floor)
  • Weight:
    • 123 lbs (bench)
    • 214 lbs (floor)
  • Power: 120V/60Hz (other voltages available)

Requirements (not included)

  • 65 psi (min) air source

Accessories (included)

Accessories (not included)

Supplies
