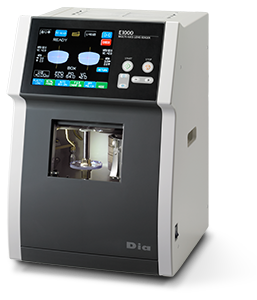

Dia E1000 Multi-Axis Lens Edger

SKU: E1000-GP3
Avail: 5 Days
Mfg: Dia Optical

Contact us for pricing


The Dia E1000 is a state-of-the-art, multifunctional patternless lens edger. Its vertical wheel technology, 3D lens sensor, and HD color touch panel enable quick and accurate processing of any lens material, style, and power.


Key Features

  • Highly configurable to suit anyone from master optician to novice
  • State of the art vertical wheel technology
  • Industrial motor and more aggressive wheels achieve significantly faster results
  • 3D lens sensor
  • HD 5x7" color touch panel
  • Compact design
  • Built-in 60-job memory (trace and process data)
  • Automatic and manual calibration and diagnostics
  • Serial interface capability with VCA-compliant host Rx software
  • Software upgradeable

E1000 In Action

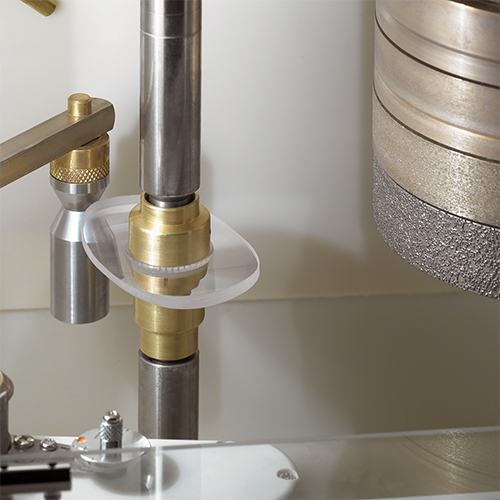

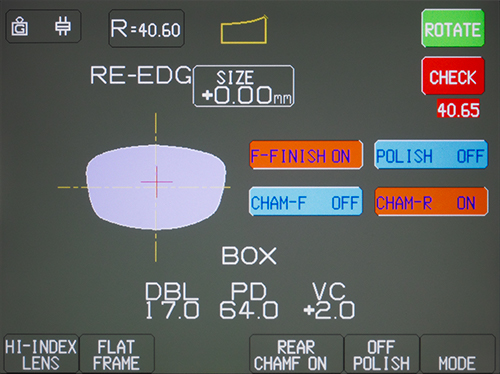

Advanced Lens Re-Edging

Ever forgotten to polish, chamfer, or groove a lens? Thanks to the E1000’s unique re-edge function, this is no problem, even if the lens was deblocked and the data cleared. Simply put a block anywhere on the lens and press the CHECK button… The 3D lens sensor will measure all aspects of the lens, and you’re ready to apply the missing features!

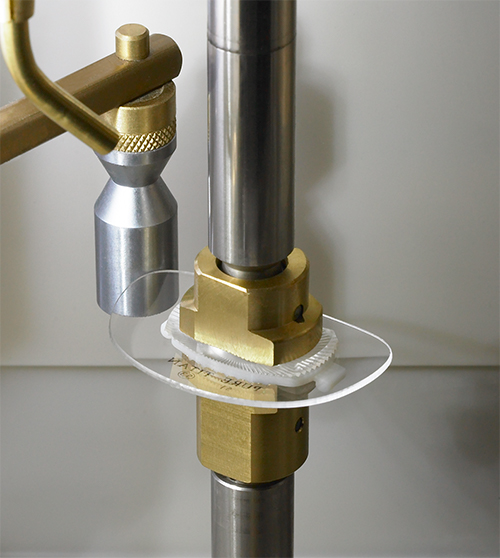

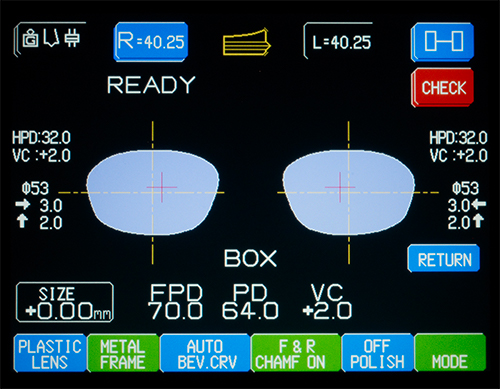

Lens Self-Tracing

Automatically copy a sample lens, other eye, or pattern without using an external tracer.

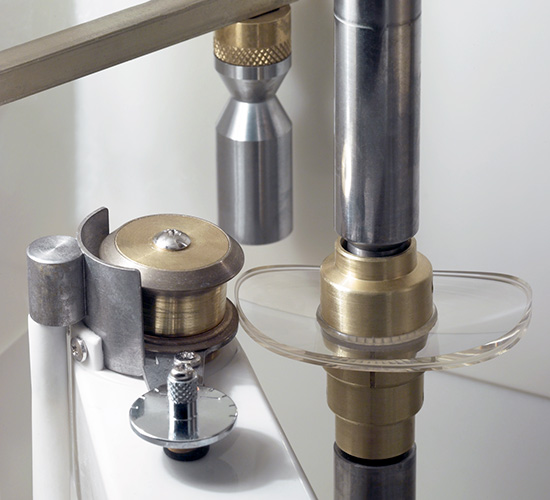

Multi-Width Grooving and Safety Beveling (GP, GP2)

Simple, durable arm grooves and safety bevels. Depth and width are easily adjusted. Concurrent grooving and finishing with polycarbonate and Trivex lenses to significantly decrease processing time!


  • Lens materials: CR-39, polycarbonate, high index plastic, Trivex, and mineral glass
  • Size: 14.57" W • 14.57" D • 21.78" H
  • Weight: 86 lbs
  • Power: 100-120V/60Hz or 200-240V/50Hz AC, 600W
