Optek Professional Plus Surfacing System
SKU: Professional Plus
Avail: Made to Order
Mfg: Optek
Contact us for pricing
Description

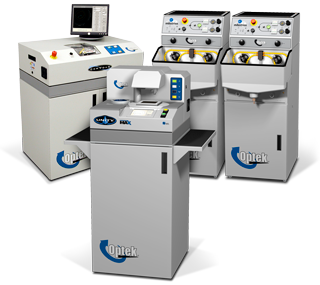

Optek’s Professional Plus Surfacing System uses state of the art design and computer assisted control to maximize the impact on your business, while minimizing the footprint everywhere else: floor space, training, maintenance, and total cost. The Professional Plus Surfacing System is a mid-level solution that features a value/performance combination of computerized and manual equipment. This balance of technology is designed to deliver uncompromising quality and many of the core automations found in our high-end Oasis MAX Surfacing System.
Key Features
- Optek’s mid-level surfacing system featuring advanced three-axis CNC technology
- The Contour MAX generator and Unity MAX blocker are digitally interfaced to the host Rx computer
- Simple operation
- Reduced human intervention reduces exposure to error
- Available with either wax or alloy blocking
- Readily expandable to accommodate any volume
- Can be configured to process plastic, polycarbonate, high index, and Trivex lenses
- LensMate Lab software interfaces with most VCA-compliant finishing equipment
- Includes:
- Complete equipment, software, and initial supplies
- Lab layout consultation
- Factory warranty and support
Highlights of the Surfacing Process
- Job data is entered into the LensMate Lab software, which performs the optical calculations, assigns tracking information, and prints the job ticket.
- The Unity MAX blocker downloads job data and bonds the aligned lens to the the block with blocking material.
- The Contour MAX generator downloads job data and generates the Rx curves and prism, while automatically cribbing and safety beveling the lens. The Contour MAX will also automatically cut a lap tool if the host reports one is not in inventory.
- An appropriate lap tool is selected from the lap cabinet. All complete Professional Surfacing systems come with a full range of highly durable finished lap tools — no need to risk quality and waste time cutting disposable tools except for out of range specials.
- The Industrion finer and polisher process the lens with the prepared lap tool.
- The surfaced lens is deblocked and sent to inspection and finishing.
Components
- Cabinet, Lap 9-Drawer W/Divide
- Lap Set, 636 Optek DuraMAX .12B/.25C In
- Optek 210 Reclaim Unit, 120/60
- Optek 310 Chiller, 120V/60Hz
- Optek 355 Tape Applicator
- Optek AL118 Lapometer
- Optek Contour MAX Generator
- Optek Industrion Finer/Polisher 120/60 (2)
- Optek LensMate Lab, Subscription
- Optek Unity MAX Blocker, Alloy
